NEW PRODUCT INFORMATION!

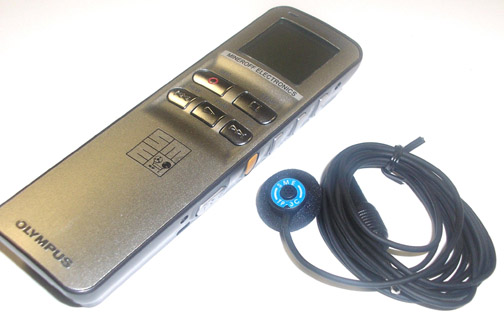

SME- DS2 STEREO DIGITAL RECORDER
WITH AUDIO FEED THROUGH

The SME-DS2 solid state recorder is geared specifically for law enforcement applications. The recorder incorporates an output socket allowing the agent to monitor telephone conversations as they occur. Room monitoring can also be established by attaching a SME high gain microphone (Stereo or Mono) to recorder and monitoring through the headphone output of the recorder. Cell phone recordings can also be recorded using the SME-TP3C cellphone recording microphone/earpiece. The DS-2 also contains built-in stereo microphones. The unit's extremely small size ( 4 1/4" x 1 1/2" x 1/2" ) makes it a perfect recorder for on-body recordings and for use in every day concealments. The DS-2 enables the user to record up to 4 hours and 20 minutes in a WMA file. This special feature enables the user to play the recording through their computer without downloading additional software. The user can also record 22 hours and 20 minutes in the LP mode in DSS format. Units are constructed with a slim-line durable body. The recorder is user friendly and you do not need a computer to program the unit. Audio recordings can be played back through the internal speaker, earphone jack, or computer. The supplied software also is loaded with features for investigations including time and date the recording was made along with length of record time, when the audio was downloaded, recorders serial number, noise reduction filters, transcription mode, etc. This new low cost recorder is the next generation for law enforcement use.

Features:
Safety Hold Switch (Transport Lock)
File Format: WMA & DSS
LCD Display with Back light
User ID Setting
Stereo Powered microphone input
Microphone Sensitivity
VCVA
Time/Date Settings
Battery Life 18 hours 2 x "AAA"
Earphone Monitoring Jack
AC powered through supplied docking station

Monitoring using the SME TP-3C Cellular Telephone Privacy Microphone: Simply insert the SME TP-3C plug into the microphone socket on the unit and attach external monitoring headset to the monitor jack on the DS-2 recorder as the diagram shows. This will enable the investigator to monitor the recording in progress.

SME DS-2 Features & Specifications

MEMORY	Built-in 64Mb	Insert Feature	No	LCD Display	Yes
Max Recording time (LP) Sampling frequency/Bit Rate	22 hours 20 min 8kHz:6.3kbps	Overwrite Feature	No	Time/Date Settings	Yes
Max. Recording time (SP) Sampling frequency/Bit Rate	10 hour 25 mins 12kHz 13.7kbps	Erase All Files	Yes	Microphone Sensitivity	Conf/Dict
Max. Recording time (HQ) Sampling frequency/Bit Rate	4 hour 20 mins 44.1.kHz 32kbps	Erase Single Files	Yes	VCVA Recording	Yes
Max. Recording time (SSP) Sampling frequency/Bit Rate	2 hour 10 mins 44.1.kHz 64kbps	Partial Erase	No	Ear Jack	Yes
Max. Recording time (SHQ) Sampling frequency/Bit Rate	1 hour 5 mins 44.1.kHz 128kbps	Lock Single Files	Yes	Powered Mic Jack	Yes (stereo)
DSS File Format	LP/SP	Folders	Yes	Safety Hold	Yes
WMA File Format	HQ/SSP/SHQ	Messages per folder	199	Battery Life	Yes (18 hours in record mode)
PC Interface	USB Cable	Individual folder names	Yes	Speaker	Yes
Data up/download from PC	Yes	User ID Setting	Through DSS Player	Maximum Output	200mW
