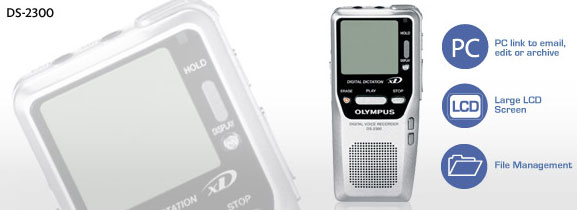

Physicians, students and the like can enjoy the ultra-efficient features of the compact DS-2300. The supplied 16MB xD-Picture Card provides abundant memory and the durability and reliability you need in a removable media card, while superb sound, a large backlit LCD, file management options and other features supply the professional performance you seek in an easy to use, sleek and stylish package.

xD REMOVABLE MEDIA. Record up to 5 hours 30 minutes in LP mode with the supplied 16MB xD-Picture Card.	DSS RECORDING. DSS format provides highly compressed file size and superior clarity.
CONVENIENT FILE CREATION. End one dictation and begin the next with a simple press of the "New" button.	FILE EDIT. Take advantage of the ability to insert and overwrite on an existing recording file.

Features and Benefits

Record up to 5 ½ hours of audio in LP mode using the included 16MB xD-Picture Card removable media.

Never miss a beat - literally - with the voice activated Variable Control Voice Actuator feature that records audio as soon as it senses sound, conserving memory and battery life, too.

Directly connect to a PC for fast file transfers with convenient PC Link capability.

A full dot, backlit LCD provides for easy viewing, even in bright conditions, for clear and quick viewing of recording times, battery life status and more.

Save files in high-compression DSS format using the included DSS Player software.

Manage audio files in up to 5 customizable folders.

Use the easily accessible "Erase" button to quickly erase single files or entire folders.

Switch between "Conference" and "Dictation" settings.

Choose between SP and LP recording modes.

Finish one dictation and begin the next with a push of the "new" button.

Place index marks at specific points in passages for quick retrieval.

Compatible with voice recognition software.

Enjoy efficient battery power with up to 20 hours provided by two AAA batteries.

Compact and lightweight design for easy portability.

Package Contents

DS-2300 Digital Voice Recorder

2 x AAA Battery

USB Cable

xD-Picture Card (16MB)

DSS Player Ver.6 (CD-ROM)

Instruction Manual

Specifications

Recording Format	DSS (Digital Speech Standard)
Recording Media	xD-Picture Card: 16 - 1GB (For type M and H xD card, the firmware 1.04 or higher is required.)
Recording Time	With included 16MB card: SP mode: 2 hours, 30 minutes LP mode: 5 hours, 30 minutes
Card Format	N/A
Input Level	-70 dBv
PC Interface	USB
LCD	29 x 31 mm
LED	Yes
Folders Messages	5 folders/199 messages per folder
Sampling Frequency	SP mode: 12 kHz LP mode: 8 kHz
Overall Frequency Response	SP mode: 300 to 5,000 Hz LP mode: 300 to 3,000 Hz
LP Mode	Yes
Voice Activation	Yes
Demographic Data Input	Yes
Practical Maximum Output	220 mW or more
Write Protection	Yes
Speaker	Built in ø28mm round dynamic speaker
Microphone Jack	ø3.5mm mini-jack, impedance MIC 2k
Earphone Jack	ø3.5mm mini-jack, impedance EAR 8 or more
Power Supply	3V
Batteries	Two (2) AAA alkaline or (2) AAA NiMH batteries
External Power Supply	No
Battery Life	Alkaline: Recording (approx. 20 hours); Playback (approx. 12 hours) Ni-MH Rechargeable: Recording (approx. 15 hours); Playback (approx. 10 hours)
Size	4.3" x 2.0" x .7" (110.2 x 50 x 17.2 mm), excluding protrusions
Weight	3.6 oz (101 g), including batteries
OS Supported	Windows: Microsoft Windows Me/2000 Professional/XP Professional, Home Edition Mac: Mac OS 10.1/10.2/10/3/10.4
CPU	Windows: Intel Pentium II class 333 MHz processor or faster (Processor 500 MHz or faster is recommended)
RAM	Windows: 128MB or more (256MB or more is recommended) Mac: OSX 128MB or more (256MB or more is recommended)
Sound Board	Windows: Creative Labs Sound Blaster 16 or 100% compatible card
Video Card and Display	Windows: 800 x 600 pixels or more, 256 colors or more Mac: 800 x 600 pixels or more, 256 colors or more
Removable Drive	Windows: 2x or faster CD-ROM, CD-R, CD-RW, DVD-ROM drive Mac: 2x or faster CD-ROM, CD-R, CD-RW, DVD-ROM drive
USB Port	Windows: One or more free ports Mac: One or more free ports
Audio Output	Windows: Microphone input and earphone output or speaker Mac: Earphone output or speakers

^
