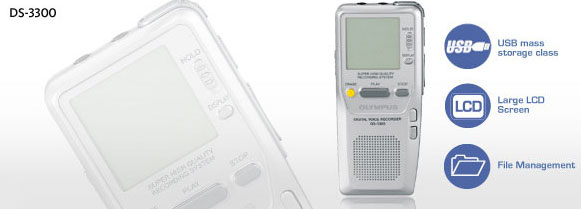

Professionals looking for high-quality performance can now get it with the DS-3300. The sleek, compact recorder provides a simple push-button design so first class features and customizable options are quickly at your service. Combined with convenient benefits including a dual function cradle, PC link and our intelligent DSS Player Pro Dictation software, the DS-3300 quite literally puts the world of professional dictation at your fingertips.

DSS PLAYER PRO SOFTWARE. Included software helps automate, streamline, and manage tasks with ease and efficiency.	PROGRAMMABLE BUTTON. Customize the functions you utilize most for quick and easy access.
OVER 11 HOURS DSS AUDIO. Record up to 11 hours in DSS format for highly-compressed file sizes and superb quality.	DUAL FUNCTION CRADLE. Conveniently charge the optional Ni-MH rechargeable battery pack (BR402) and/or quickly upload and download audio to a PC.
HANDS-FREE RECORDING. Use the optional footswitch (RS-25) to record audio without lifting a finger.	AUTHOR/WORK TYPE ID. Program up to 10 Author ID's and 10 Work Type ID's for seamless sharing of the DS-3300 with your peers.

Features and Benefits

Easy push-button operation.

Records up to 11 hours of high-quality DSS sound.

Includes 32MB xD removable media, available in capacities up to 512MB.

Access your favorite features via a programmable button you can customize.

Program up to 10 Author ID's and 10 Work Type ID's so you can share with other professionals with ease.

Use the DS-3300 as a USB microphone or USB speaker when connected to a PC.

Included cradle provides dual capability for charging the optional Ni-MH rechargeable battery pack and for quick uploads and downloads to/from a PC.

Hands-free recording with the optional RS-25 footswitch.

Voice Activation mode.

File/Edit function allows you to easily insert, overwrite, partially erase files.

Large backlit LCD provides an easy-to-see view of information such as recording time and other functions.

High or Normal priority settings.

DSS recording format.

PC Link enables you to directly transfer files to a computer for editing, listening, emailing, etc.

SP and LP recording modes.

1 to 5 folders/199 files per folder (up to 7 folders if customized).

Adjustable microphone sensitivity means you can set it to Conference mode or Dictation mode.

Package Contents

DS-3300 Digital Voice Recorder

Carrying Case

2 x AAA Alkaline Batteries

DSS Player Pro Dictation Software

32MB xD-Picture CardTM removable media

CR-3 Multi-function cradle/docking station

KP-11 USB Cable

User manual

Quick Reference Guide

Specifications

Recording Format	DSS (Digital Speech Standard)
Recording Media	xD-Picture Card: 16 - 1GB (For type M and H xD card, the firmware 1.04 or higher is required. Please check with your dealer.)
Recording Time	With included 32MB card: SP mode: 5 hours, 13 minutes LP mode: 11 hours, 00 minutes
Card Format	N/A
Input Level	-70 dBv
PC Interface	USB
LCD	Yes
LED	Yes
Folders Messages	1 to 7 folders/199 messages per folder
Sampling Frequency	SP mode: 12 kHz LP mode: 8 kHz
Overall Frequency Response	SP mode: 300 to 5,000 Hz LP mode: 300 to 3,000 Hz
LP Mode	Yes
Voice Activation	Yes
Demographic Data Input	Author ID, Work Type, Date/Time, Priority, Index, etc.
Practical Maximum Output	220 mW or more
Write Protection	No
Speaker	Built in ø28mm round dynamic speaker
Microphone Jack	ø3.5mm mini-jack, impedance MIC 2k
Earphone Jack	ø3.5mm mini-jack, impedance EAR 8 or more
Power Supply	3V
Batteries	Ni-MH Rechargeable Battery Pack (BR402) or two (2) AAA batteries or two (2) Ni-MH rechargeable batteries (BR401)
External Power Supply	No
Battery Life	Alkaline: Recording (approx. 20 hours); Playback (approx. 12 hours) Ni-MH Rechargeable: Recording (approx. 15 hours); Playback (approx. 10 hours)
Size	4.3" x 1.9" x 0.7" (without protrusions)
Weight	101 g (including alkaline batteries)
OS Supported	Windows: Microsoft Windows 98/98SE/Me/2000 Professional/XP Professional, Home Edition Mac: Mac OS 9.0 - 9.2.2/10.1/10.2/10/3/10.4
CPU	Windows: Intel Pentium II class 333 MHz processor or faster (Processor 500 MHz or faster is recommended)
RAM	Windows: 128MB or more (256MB or more is recommended) Mac: OSX 128MB or more (256MB or more is recommended) Mac: OS 9.x 64MB or more (128MB or more is recommended)
Sound Board	Windows: Creative Labs Sound Blaster 16 or 100% compatible card
Video Card and Display	Windows: 800 x 600 pixels or more, 256 colors or more Mac: 800 x 600 pixels or more, 256 colors or more
Removable Drive	Windows: 2x or faster CD-ROM, CD-R, CD-RW, DVD-ROM drive Mac: 2x or faster CD-ROM, CD-R, CD-RW, DVD-ROM drive
USB Port	Windows: One or more free ports Mac: One or more free ports
Audio Output	Windows: Microphone input and earphone output or speaker Mac: Earphone output or speakers

^
