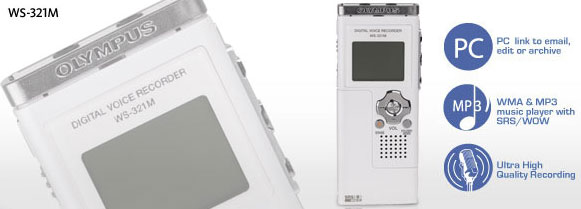

WS-321M Digital Recorder

Capture It All™ in high-performance audio. Stay organized and on the move with this high-class storage device and powerful music player. Record meetings or notes and even store large documents to transfer from one computer to another. The easy-to-use USB input lets you plug the WS-321M right into the computer for fast results. And up to 250 songs can be stored and played in impressive stereo sound with track and artist name clearly displayed on the LCD.

277 HOURS RECORDING TIME. You'll never be hindered from recording audio, notes, lectures and more with an amazing 277 hours of available recording time. DIRECT PC LINK. Nothing is faster than plugging right into the USB port on a computer to download or upload files with the WS-321M's cool "USB Direct" design. LET THE MUSIC PLAY. Store and listen to up to 250 songs for entertainment on the go. Music at your fingertips, whenever and wherever. BUILT-IN STEREO MICROPHONE. From personal notes to school lectures to business-related meetings and music galore, everything sounds great in clear stereo sound from the built-in stereo microphone

Features & Benefits

Record
	Built-in stereo microphone
	1GB internal flash memory
	WMA recording format
	277 hours of recording time in LP mode
	Six recording modes: Use STXQ, STHQ and STSP for stereo recording or HQ, LP and SP for extended recording
	Variable Control Voice Actuator (VCVA) records only when sound is sensed
	One long-life battery (supplied) provides 21 hours of continuous operation
	The Low Cut Filter minimizes air conditioner noise and other similar noises
Organize
	Five file folders, each holding up to 200 files, provide unparalleled organization
	Up to 16 index marks can be set in a file
	As a USB storage device the WS-321M can save a variety of files in addition to audio files
	Lock files to avoid files being accidentally erased
Connect
	"USB Direct" design provides easy connection to a PC
	High-speed USB 2.0 provides fast download times
Playback
	WMA & MP3 Music Player
	Noise Cancel feature cuts out unwanted background noise
	Voice Filter enhances the human voice by cutting low and high frequency noises during playback
	Slow and fast playback speed variations
	Repeat and Random playback
	WOW XTTM technology provides rich bass and three-dimensional stereo sound
	Customize the sound with a built-in equalizer

Package Contents

• WS-321M Digital Voice Recorder with WMA/MP3 Music Player
• USB Cable
• Stereo Earphones
• 1 AAA Alkaline Battery
• Instruction Manual

Specifications

Recording Format	WMA (Windows Media Audio)
Recording Media	Built-in 1 GB flash memory
Recording Time	Stereo XQ Mode: 17 hours, 40 minutes Stereo HQ Mode: 35 hours, 25 minutes Stereo SP Mode: 70 hours, 55 minutes HQ Mode: 70 hours, 55 minutes SP Mode: 139 hours, 30 minutes LP Mode: 277 hours, 35 minutes
Card Format	N/A
Input Level	-70 dBv
PC Interface	USB Direct 2.0 high speed
LCD	Yes
LED	Yes
Folders Messages	5/200 per folder
Sampling Frequency	Stereo XQ Mode: 44.1kHz Stereo HQ Mode: 44.1kHz Stereo SP Mode: 44.1kHz HQ Mode:44.1kHz SP Mode: 22.0kHz LP Mode: 8.0kHz
Overall Frequency Response	Stereo XQ Mode: 50-19,000Hz Stereo HQ Mode: 50-15,000 Hz Stereo SP Mode: 50-9,000Hz HQ Mode:50-13,000Hz SP Mode: 100-7,000Hz LP Mode: 100-3,000Hz
LP Mode	Yes
Voice Activation	Available via menu setting
Demographic Data Input	N/A
Practical Maximum Output	70 mW
Write Protection	N/A
Speaker	Built-in ø18 mm round dynamic speaker
Microphone Jack	Yes
Earphone Jack	Yes
Power Supply	One AAA battery
Batteries	One AAA battery
External Power Supply	N/A
Battery Life	Approx. 21 hours (using alkaline dry cell battery)
Size	3.7"L x 1.5"W x 0.4"D (94.7 mm x 38.6 mm x 10.9 mm), excluding protrusions
Weight	1.7 oz. (47 g), including battery
OS Supported	Microsoft® Windows® 2000 / Windows XP / Windows Vista™
CPU	N/A
RAM	N/A
Sound Board	N/A
Video Card and Display	N/A
Removable Drive	N/A
USB Port	One free port
Audio Output	N/A



^
