This microcassette recorder comes with voice activation so you can utilize it "hands-free" if desired. It also features fast play mode for playback that’s 25% faster, and external jacks for headphones, earphones, and AC power.

VOICE ACTIVATION. The S713 will begin recording when the microphone senses sound.	TAPE COUNTER. Locate important audio quickly so you can revisit it time and time again.
EXTERNAL JACKS. Utilize external jacks for a microphone, earphones and AC power.	FAST PLAYBACK. Listen efficiently with playback 25% faster than real time.

Features and Benefits

Variable control voice actuator for hands-free recording

Tape counter for easy location of previously-recorded passages

Dual tape speeds give you up to three hours of recording time on a 90-minute tape

Cue/Review makes for fast, easy message monitoring

Built-in microphone for recording anytime, anywhere

Built-in, dynamic speaker delivers crystal-clear sound

External jacks provide easy connection for earphone, microphone and external power

Quick review lets you listen to what has just been recorded

Package Contents

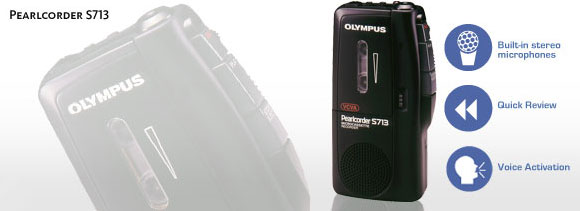

Pearlcorder S713

Instruction Manual

2 x AA Batteries

3 x XB60 Tape

Specifications

Drive System	Capstan drive
Tracks	2 tracks, 1 channel monophonic
Tape Speed	2.4 cm/ sec., 1.2 cm/ sec. switchable
Microphone Sensitivity	Continuous adjustment using volume knob
Recording Method	n/a
Voice Activation	Continuous adjustment using volume knob in the VCVE (Variable Control Voice Actuator) recording mode
Speaker	36 mm dynamic internal speaker
Overall Frequency Response	400 ~ 4,000Hz at 2.4 cm/ sec. 400 ~ 3,000Hz at 1.2 cm/ sec.
Remote Jack	n/a
MIC Jack	2.5 mm diameter, impedance 2k ohms
Earphone Jack	2.5 mm diameter, impedance 8 ohms
Practical Max Output	150 mW at 2.4 cm/ sec.
Continuous Battery Duration Time	Recording time 17 hours (when alkaline manganese dry cell batteries are used by the Olympus testing method)
Power Source	n/a
Battery	Two 1.5V AA batteries
External Power Supply	A-321 AC Adapter
Dimensions	4.8 in. (L) x 1.0 in. (H) x 2.3 in. (W) / 121 mm (L) x 26 mm (H) x 58 mm (W) (excluding protrusions)
Weight	5.6 oz. / 160 g (including batteries)

^
