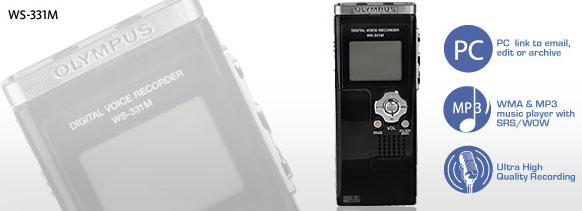

WS-331M Digital Recorder

Stay organized and on the move with this high-class storage device and powerful music player. Record meetings or notes and even store large documents to bring from one computer to another. The easy USB input lets you plug the WS-331M right into the computer for fast results. And up to 500 songs can be stored and played in impressive stereo sound with track and artist name clearly displayed on the LCD.

555 HOURS RECORDING TIME. You'll never be hindered from recording audio, notes, lectures and more with an amazing 555 hours of available recording time. DIRECT PC LINK. Nothing is faster than plugging right into the USB port on a computer to download or upload files with the WS-331M's cool "USB Direct" design. LET THE MUSIC PLAY. Store and listen to up to 500 songs for entertainment on the go. Music at your fingertips, whenever and wherever. BUILT-IN STEREO MICROPHONE. From personal notes to school lectures to business-related meetings and music galore, everything sounds great in clear stereo sound from the built-in stereo microphone.

Features & Benefits

• Built-in stereo microphone.
• The unique "USB Direct" design means you can connect it right to the USB port on your computer and download or transfer audio, music, photos and more.
• 555 hours of recording time in LP mode or 500 songs (4 minutes with 128kbps per song).
• Records in popular Windows Media Audio (WMA) format.
• Backlight Full-Dot LCD.
• 2GB of internal flash memory.
• USB mass storage class means the WS-331M can store documents, images, audio and more.
• Play recordings in Fast and Slow Playback mode - 50 percent faster or 50 percent slower than real time.
• Choose between six recording modes. Three Stereo modes including STXQ, STHQ and STSP, or three monaural modes including HQ, LP and SP for extended recording times.
• Organize up to 200 files in each of five available folders for quick retrieval and storage convenience.
• The Low Cut Filter minimizes air conditioner noise and other similar noises while recording.
• Noise Cancel function and a Voice Filter function cut noise and enable clear audio playback.
• This recorder is compatible with USB 2.0, enabling fast data transfer.
• Use the Voice Activation mode and record sound, via the built-in microphone, without ever lifting a finger.
• Set a portion of an audio file to play on a repeat basis with the Repeat Playback option.
• Lock files to remove any chance of files being accidentally erased.
• Index mark and temp mark features allow you to quickly find desired locations.
• Erase single or multiple files at once.
• Adjust the microphone sensitivity to meet your specific needs.
• Up to 21 hours of continuous operation is achieved with only one AAA battery.
• Supports music files in MP3 and WMA.
• WOW XTTM audio technology provides rich bass and 3-dimensional stereo sound during music playback.
• Use the Equalizer Setting to enjoy your favorite types of music with the best possible sound.
• Choose between Random and Repeat playback modes.

Package Contents

• WS-331M Digital Voice Recorder
• Stereo Earphones
• 1 AAA Alkaline battery
• USB Cable
• Instruction Manual

Specifications

Recording Format	WMA (Windows Media Audio)
Recording Media	Built-in 2 GB flash memory
Recording Time	Stereo XQ Mode: 35 hours, 30 minutes Stereo HQ Mode: 71 hours, 00 minutes Stereo SP Mode: 142hours, 05 minutes HQ Mode: 142 hours 05 minutes SP Mode: 279 hours 35 minutes LP Mode: 555 hours 45 minutes
Card Format	N/A
Input Level	-70dbv
PC Interface	USB direct, 2.0 full speed
LCD	Yes
LED	Yes
Folders Messages	5/200 per folder
Sampling Frequency	Stereo XQ:44.1kHz/Stereo HQ:44.1kHz/Stereo SP:44.1kHz/HQ:44.1kHz/SP:22.0kHz/LP:8.0kHz
Overall Frequency Response	Stereo XQ: 50-19,000Hz/Stereo HQ: 50-15,000Hz/Stereo SP: 50-9,000Hz/HQ: 50-13,000Hz/SP:100-7,000Hz/LP:100-3,000Hz
LP Mode	Yes
Voice Activation	Available, Switchable On/Off
Demographic Data Input	N/A
Practical Maximum Output	70 mW
Write Protection	N/A
Speaker	Built-in ø18 mm round dynamic speaker
Microphone Jack	Yes
Earphone Jack	Yes
Power Supply	One AAA battery
Batteries	One AAA battery
External Power Supply	N/A
Battery Life	Approx. 21 hours (using alkaline dry cell battery)
Size	3.73"L x 1.52"W x 0.43"D (excluding protrusions)
Weight	1.66 oz. (47g) including battery
OS Supported	Microsoft Windows 2000/XP/Vista
CPU	N/A
RAM	N/A
Sound Board	N/A
Video Card and Display	N/A
Removable Drive	N/A
USB Port	One free port
Audio Output	N/A



^
