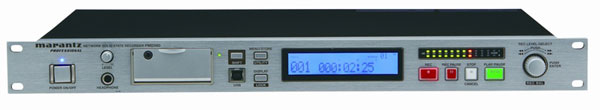

PMD580 Professional Solid State Recorder

Expanding on the legacy of reliable, professional recording of the PMD560 and PMD570 solid state recorders for permanent installations, Marantz is pleased to present the PMD580, a single rack-space digital recorder that adds advanced network control and automatic archiving to the capabilities of this popular line.

Like its line mates, the PMD580 uses proven, stable Compact Flash (CF) as its recording medium, with the inherent reliability of no moving parts. But the PMD580 takes convenience and functionality to another level, incorporating Ethernet connectivity and an internal, browser-style interface that allows centralized control of all operations including scheduling of recordings, machine setup, and file transfer.

Highlights

Professional Quality Digital Recording

With a choice of 16- or 24-bit recoding in a variety of file formats and quality settings, the PMD580 can handle everything from orchestral music to meetings and lectures with equal aplomb. Its FAT32 file structure is future-proof, handling any size CF card (up to 2 terabytes) behind its front-mounted security door.

Flexible File Formats

The PMD580 can record uncompressed WAV or compressed MP3 files across a variety of quality settings, with sample rates up to 48 kHz. Assignable options are accessible from the menu, making it simple even for inexperienced operators to select the best option.

Ease of Operation

With its intuitive front panel controls and menu-driven setup, the PMD580 is easy to use. A front-panel screen guides the user through selection of file format and quality settings, while a 12-stage stereo VU meter and headphone output with volume control enable quick and sure confirmation of recording status.

System Compatibility

With full professional inputs and outputs, both analog and digital, the PMD580 integrates easily into any system. Analog I/O includes both balanced XLR and unbalanced phono plugs, while digital capabilities include both AES/EBU and S/PDIF inputs and outputs. Beyond that, an RS232C port enables remote control in Crestron and AMX systems, while an Ethernet connection makes the PMD580 a full-fledged network device for both acquisition and playback.

Network Operation and Control

With its Ethernet connectivity and internal Web GUI, the PMD580 appears as a network device, allowing full remote setup and control. This browser-style interface is integral to the design, requiring no extra software and compatible with both PC and Mac network environments. Recording sessions can be scheduled in advance, and recorded files can be downloaded directly to a computer.

Automatic Archiving

For ultimate convenience, an automatic archiving feature allows the downloading of recorder files, eliminating the need to physically walk the CF card back to the storage server. With the ability to lock out front panel controls and track real time, the user can confidently schedule the day’s recording to be archived to a designated computer or server at the end of the day, so the PMD580 is always ready to handle the next day’s activities.

Convenience Features

The PMD580 includes numerous functional recording and editing features. Files can be marked and divided either manually while recording, as well as automatically in predefined increments, making it easier to sort through hours of recorded materials. Whether used manually, via RS232 control or via its IP network interface, the PMD580 offers both comprehensive recording capability and ease of operation, making it the ultimate solid state recorder for the installation market.

Specifications

Digital Audio System
System	Solid State Recorder
Usable Media	CF Memory Cards, Microdrive Cards
Recording and Media Methods MP3 WAV	MPEG1 Layer III Compression 16/24 Bit Linear PCM
Recording MP3 Bit-rate (Selectable) Mono Stereo	160, 128, 96, 64, 32 kbps 320, 256, 192, 128, 64 kbps
Sampling Frequency	44.1/48 kHz
Number of Channels	2 (Stereo), 1 (Mono)
Audio Frequency Response	10 to 20,000 Hz ± 1.0 dB
Signal-to-noise Ratio, IEC-A Weighted	91 dB
Total Harmonic Distortion at 0 VU	0.01%
Dynamic Range	94 dB

Inputs
Balanced Input Type Input Sensitivity	XLR (1:GND, 2:HOT, 3:COLD) +4 dBu/-20dBu/24 kohms
Unbalanced Input Type Input Sensitivity	RCA Jack 500 mVrms/22 kohms
Balanced Digital Input Type Sampling Frequency Format	XLR (1:GND, 2:HOT, 3:COLD) 44.1/48 kHz AES/EBU or SPDIF (IEC 958 Type II)
Unbalanced Digital Input Type Input Impedance Standard Input Level Sampling Frequency Format	RCA Jack 75 kohms 0.5 Vp-p 44.1/48 kHz AES/EBU or SPDIF (IEC 958 Type II)

Outputs
Balanced Output Type Level	XLR (1:GND, 2:HOT, 3:COLD) +18 dBu (+4 dBu Reference)/600 kohms
Unbalanced Output Type Standard Level	RCA Jack 2 Vrms (+4 dBu Reference)/10 kohms
Balanced Digital Output Type Output Impedance Standard Output Level Format	XLR (1:GND, 2:HOT, 3:COLD) 110 ohms 3.5 Vp-p AES/EBU or SPDIF (IEC 958 Type II)
Unbalanced Digital Output Type Output Impedance Standard Output Level Sampling Frequency Format	RCA Jack 75 ohms 0.5 Vp-p 44.1/48 kHz AES/EBU or SPDIF (IEC 958 Type II)

LAN Interface Format Transmission Rate Connector

10Base-T/100Base-TX 10/100 Mbps 8pin RJ-45

General
Power Requirements U.S. Model European Model	AC 120 V 60 Hz AC100 -240 V 50/60 Hz
Power Consumption	26 W
Environmental Conditions Operational Temperature Operational Humidity Storage Temperature	5-35 °C (41-95 °F) 25 - 85% (No Condensation) –20 - 60 °C (-4 - 140 °F)
Headphone Output Power	18 mW+ 18 mW/32 ohms
Dimensions Width Height Depth Weight	483 mm (19.0") 44 mm (1.7") 344 mm (13.5") 3.7 kg (8.2 lbs)

Included Accessories
Power Cord (for U.S.)	1
Power Cord (for Europe)	2
USB Cable	1
Audio Cable	2
CF Door Screw	2
Retainer	1
User Guide	1
CDROM	1
