DM-620 Digital Audio Recorder

CAPTURE PREMIUM SOUND

The DM-620’s new "TRESMIC" 3 microphone system now allows you to capture a wider stereo sound, making your recordings that much better. The ultra high-quality sound -- along with 4GB of built in memory and microSD card slot -- and three recording formats allow you to record incredible audio.

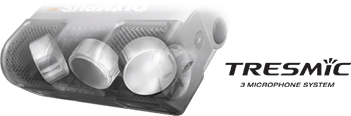

TRESMIC 3 MICROPHONES: STEREO DIRECTIONAL MIC AND CENTER OMNI DIRECTIONAL MIC The DM-620 has a stereo directional condenser microphone and a center omni-directional microphone giving you the ability to capture lower bass ranges with stunning clarity. 4GB BUILT-IN MEMORY AND MICRO SD CARD SLOT With more than 1000 hours of recording time, you’ll be able to easily capture notes, lectures, and much more without running out of memory. PCM (WAV), MP3, AND WMA RECORDING FORMATS Record and play back in all three of the standard high-function formats: PCM(WAV) MP3 and WMA.



Features & Benefits

• TRESMIC 3 MICROPHONES
  Stereo Directional mic and Center Omni Directional mic allow you to capture lower bass ranges with stunning clarity.
• 4GB INTERNAL MEMORY AND MICRO SD CARD SLOT
  4GB of internal memory allows you more than a thousand worry-free hours of recording time, with microSD card compatibility that extends it to 512MB-32GB.
• MP3, WMA & PCM (WAV) RECORDING
  Record and play back in MP3, WMA and PCM formats with a quality that’s as good as its operation is easy.
• BATTERY CHARGE FUNCTION
  Charges the battery while connected to your PC or plugged in the AC Adapter (optional). Long battery life with lithium-ion rechargeable battery.
• SCENE SELECTION PLAYBACK
  Automatically adjust recording to your environment with the scene selection playback function.
• MULTIPLE LANGUAGE DISPLAY
  The bright LCD supports and displays three languages -- another plus for accessibility. (EN/FR/ES/PT)
• VOICE GUIDANCE
  A voice guidance system ensures seamless, user-friendly operation of all functions in the menu.
• VARIABLE CONTROL VOICE ACTUATOR
  Built-in VCVA (Variable Control Voice Actuator) is another hands-free function that adds ease and practicality.
• COMES WITH OLYMPUS SONORITY
  Easy-to-use Olympus Sonority editing software for sound editing, file management and Podcast management, compatible with PCs and Macs.


• Package Contents
  DM-620 Recorder
  Ni-MH Rechargeable Batteries
  USB cable
  Strap
  Carrying Case
  Olympus Sonority Software CD
  Instruction Manual





Specifications

Recording Format	PCM (WAV), MP3 and WMA
Recording Media	Built-in 4GB flash memory and micro SD card slot
Recording Time	PCM 48kHz 16-bit: 5h25m 44.1kHz 16-bit: 5h55m MP3 320kbps: 26h 256kbps: 32h30m 128kbps: 65h30m 64kbps mono: 131h WMA 128kbps: 64h 64kbps: 128h 32kbps: 257h 8kbps mono: 1007h
PC Interface	Hi speed USB 2.0
Overall Frequency Response	20Hz-20kHz(center microphone ON) 70Hz-20kHz(center microphone OFF)
Practical Maximum Output	Headphone: 4.0mW + 4.0mW (at load of 16?) Speaker: 400mW (8? load)
Speaker	20 mm round dynamic speaker (mono)
Microphone Jack	3.5mm dia. Mini-jack, impedance 2.2k?
Earphone Jack	3.5mm dia, impedance 8? or more
Power Supply	2 x AAA Ni-MH rechargeable batteries or alkaline (LR03 or R03) batteries / DC5V AC adapter (optional)
Size	4.4" x 1.6" x 0.6" (110.8 x 39.8 x 15.4 mm)
Weight	3.03 oz (86g), including batteries
OS Supported	Microsoft Windows XP/Vista/7 Mac OS X 10.4.1-10.6

Specifications and design are subject to change without notice.

^
