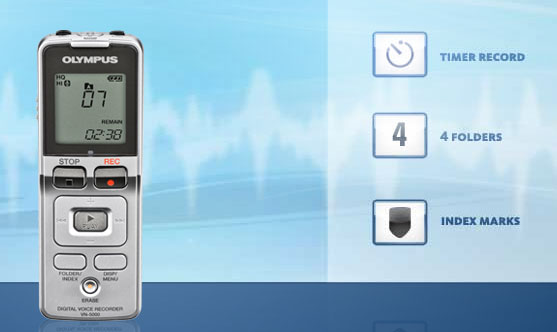

VN-5000 Digital Voice Recorder

The power to recall every sound. A sleek, pocket-sized voice recorder, the VN-5000 is perfect for people who want to record interviews, lectures and conversations. Its intuitive thumb pad controls make it easy to record, index and manage your files. Plus, it offers 300 hours of continuous recording time—so you won’t have to cut anyone short.

RECORDING HOURS. Supports over 300 hours of continuous recording with 512MB memory. INDEX MARKS. Allows you to electronically mark where each file begins so you can easily find, erase and transfer files. LONG BATTERY LIFE. Records for up to 39 hours before you have to replace or recharge batteries. VARIABLE CONTROL VOICE ACTUATOR. Allows you to electronically mark where each file begins so you can easily find, erase and transfer files.

Features & Benefits

• Slow and Fast Playback modes let you listen to audio 25 percent slower or 50 percent faster than real time.
• Easy file management functions allow you to erase single files, multiple files as well as transfer files.
• Large LCD for easy, quick viewing of file locations, recording status and battery life.
• Certified as an Olympus Eco-product, this voice recorder has a reduced environmental footprint across its entire product lifecycle, which encompasses not only the product and its packaging, but also the manufacturing and logistical processes in bringing the product to the marketplace.
• Record up to 300 hours and 30 minutes of uninterrupted audio in LP mode.
• Contains four folders and each folder stores up to 100 files.
• Select from three recording modes to meet your specific needs: HQ for high-quality; SP and LP for extended recording.
• Voice activation extends recording time by recording only when the microphone senses sound.
• Index marks let you specify a particular point in a recording or playback for easy retrieval.
• Use the timer recording option to set a start and end time for a particular recording.
• Playback a pre-selected file at a specific time for reminders or wake-up calls.

Package Contents

• VN-5000 Recorder
• Instruction Manual
• Warranty Card
• 2 x AAA Batteries






Specifications

Recording Format	Multi-codec: HQ/SP: SubBand, LP: CELP
Recording Media	Built-in 512 MB flash memory
Recording Time	HQ mode: Approximately 20 hours, 5 minutes SP mode: Approximately 53 hours, 40 minutes LP mode: Approximately 300 hours, 30 minutes
PC Interface	N/A
LED	Two colors (red = record; green = playback)
Folders Messages	4/100 per folder
Sampling Frequency	HQ: 17.6 kHz SP: 10.6 kHz LP: 6.6 kHz
Overall Frequency Response	HQ: 200-7,900 Hz SP: 300-4,700 Hz LP: 300-2,900 Hz
LP Mode	Yes
Voice Activation	Yes
Practical Maximum Output	120 mW
Speaker	28 mm round dynamic speaker
Microphone Jack	3.5 mm mini-jack, impedance 2k ohms
Earphone Jack	3.5 mm mini-jack, impedance 8 ohms
Power Supply	Two AAA alkaline (LR03 or R03) batteries or two AAA NiMH rechargeable batteries
Battery Life	Alkaline: Approximately 39 hours NiMH: Approximately 22 hours
Size	4.0 x 1.4 x 0.8 in. (102 x 36 x 20.5 mm)
Weight	2.2 oz. (63 g), including batteries

^
