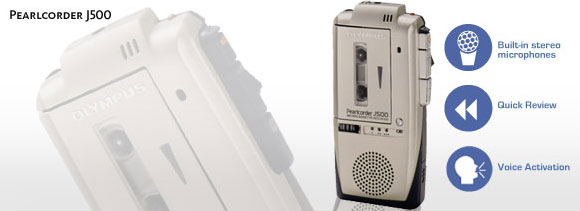

Whether at a conference, a meeting, or other occasion, you’ll get clear audio with the hand-held J500. Plus, you can index important points, utilize dual tape speed for increased recording capacity, and monitor the life of your battery via the LED battery check system.

VOICE ACTIVATION. The J500 will begin recording when the microphone senses sound.	VOLUME CONTROL. Automatic recording levels determine the perfect volume for your audio recording.
INDEX MARKING. Index your recordings so you can quickly locate important audio.	BATTERY POWER INDICATOR. Stay on top of your battery’s life so you never run out of power.

Features and Benefits

Indexing capability to easily locate important recordings

3 LED battery-check system for information on how much battery life remains

Variable control voice actuator for hands-free recording

Tape counter for easy location of previously recorded passages

Dual tape speeds give you up to three hours of recording time on a 90-minute tape

External jacks provide easy connection for earphone, microphone and external power

Cue/Review makes for fast, easy message monitoring

Built-in microphone for recording anytime, anywhere

Built-in, dynamic speaker delivers crystal-clear sound

Quick review lets you listen to what has just been recorded

Package Contents

Pearlcorder J500

Instruction Manual

Wrist Strap

2 x AAA Batteries

1 x XB60 Tape

Specifications

Drive System	Capstan Drive
Tracks	2 tracks, 1 channel monophonic
Tape Speed	2.4 cm/ sec., 1.2 cm/ sec. (switchable)
Microphone Sensitivity	Continuous adjustment using volume knob
Recording Method	n/a
Voice Activation	Continuous adjustment using volume knob in the VCVA recording mode
Speaker	28mm dynamic internal speaker
Overall Frequency Response	400 ~ 4,000Hz at 2.4 cm/ sec. 400 ~ 3,000Hz at 1.2 cm/ sec.
Remote Jack	n/a
MIC Jack	2.5 mm diameter, impedance 2k (headphones)
Earphone Jack	2.5 mm diameter, impedance 2k
Practical Max Output	150 mW at 2.4 cm/ sec.
Continuous Battery Duration Time	Recording time 17 hours (when alkaline manganese dry cell batteries are used by the Olympus testing method)
Power Source	Rated voltage 3V DC
Battery	Batteries: two 1.5V "AAA" batteries
External Power Supply	A-321 AC Adapter
Dimensions	4.25 in. (L) x 0.75 in. (H) x 2.1 in. (W) / 108 mm (L) x 19 mm (H) x 53 mm (W) (excluding protrusions)
Weight	4.9 oz. / 140 g (including batteries)

^
