Beginners will love this compact voice recorder with an attractive blue finish. Its small size makes it extremely portable so you can use it at home, in class, at the office, or anywhere you want. The built-in microphone provides clear sound and its dual tape speed function lends for desired flexibility.

DUAL TAPE SPEED. Record up to 180 uninterrupted minutes with MC-90 tape at 1.2cm/sec.	CUE AND REVIEW. Cue/Review makes for fast, easy message monitoring.
BUILT-IN MICROPHONE. Built-in microphone for recording anytime and anywhere.	BUILT-IN SPEAKER. Receive crystal-clear sound wherever your recording takes place.

Features and Benefits

Dual tape speeds give you up to three hours recording time on a 90-minute tape

Cue/Review makes for fast, easy message monitoring

Built-in microphone for recording anytime, anywhere

Built-in, dynamic speaker delivers crystal-clear sound

External jack provides easy connection for earphone

Quick review lets you listen to what has just been recorded

Appealing blue finish

Package Contents

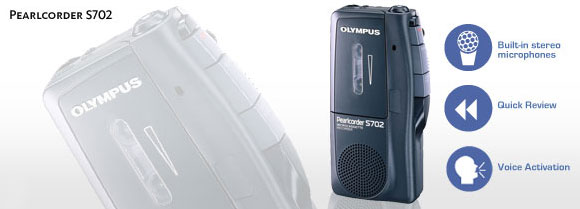

Pearlcorder S702

Instruction Manual

2 x AA Batteries

1 x XB60 Tape

Specifications

Drive System	Capstan drive
Tracks	2 tracks, 1 channel monophonic
Tape Speed	2.4 cm/ sec., 1.2 cm/ sec. switchable
Microphone Sensitivity	Continuous adjustment using volume knob
Recording Method	n/a
Voice Activation	n/a
Speaker	36 mm round-type dynamic internal speaker
Overall Frequency Response	400 ~ 4000 Hz at 2.4 cm/ sec. 400 ~ 3000 Hz at 1.2 cm/ sec.
Remote Jack	n/a
MIC Jack	n/a
Earphone Jack	2.5 mm diameter, impedance 8 ohms
Practical Max Output	150 mW at 2.4 cm/ sec.
Continuous Battery Duration Time	Recording time 17 hours (when alkaline manganese dry cell batteries are used by the Olypmus testing method)
Power Source	n/a
Battery	Two 1.5V AA batteries
External Power Supply	n/a
Dimensions	4.8 in. (H) x 2.3 in. (W) x 1.0 in. (D) (excluding maximum protrusions)
Weight	5.6 oz. / 160 g (including batteries)

^
