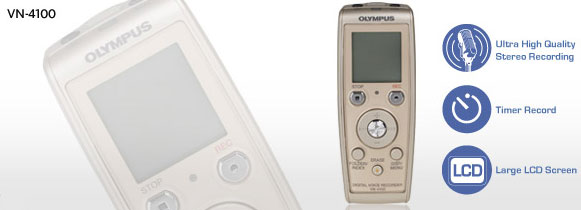

VN-4100 Digital Recorder

This pocket-sized recorder is sleek in style and powerful in performance with over 144 hours of continuous recording capability. The easy-to-use thumbpad makes for quick and convenient operation of functions like file management, choosing playback and recording modes and more. Timer recoding and voice activation provide excellent versatility.

144 HOURS 20 MINUTES RECORDING TIME. Enjoy a staggering 8,660 minutes of continuous recording time in LP mode with 256MB of internal flash memory. QUICK, EASY FILE MANAGEMENT. Organize and store recordings in four separate folders. INDEX MARKING. Place an index mark at any point during recording or playback to quickly locate passages of interest. TIMER RECORDING. Program the VN-4100 to start and end recordings at specific times for the ultimate in recording convenience.

Features & Benefits

• Record up to 144 hours and 20 minutes of uninterrupted audio in LP mode.
• Select from four recording modes to meet your specific needs: XHQ for extra high quality, HQ for high-quality; SP and LP for extended recording.
• Large LCD for easy, quick viewing of file locations, recording status and battery life.
• Slow and Fast Playback modes let you listen to audio 25 percent slower or 50 percent faster than real time.
• Four folders, and each folder stores up to 100 files.
• Easy file management functions allow you to erase single files, multiple files as well as transfer files.
• Voice activation extends recording time by recording only when the microphone senses sound.
• Index marks let you specify a particular point in a recording or playback for easy retrieval.
• Use the timer recording option to set a start and end time for a particular recording.
• Playback a pre-selected file at a specific time for reminders or wake-up calls.

Package Contents

• VN-4100 Digital Voice Recorder
• 2 AAA Alkaline batteries
• Instruction Manual

Specifications

Recording Format	CELP+ADPCM
Recording Media	Built-in 256MB Flash Memory
Recording Time	11 hours 40 minutes in XHQ mode 23 hours 40 minutes in HQ mode 47 hours 20 minutes in SP mode 144 hours 20 minutes in LP mode
Card Format	N/A
Input Level	-70dbv
PC Interface	N/A
LCD	23 x 25 mm
LED	2 colors (red = record/transfer; green = playback)
Folders Messages	4/100 per folder
Sampling Frequency	XHQ/HQ: 16.0kHz/SP:12.0kHz/LP:7.00kHz
Overall Frequency Response	XHQ/HQ: 300-7200Hz/SP:300-5400Hz/LP:300-3100Hz
LP Mode	Yes
Voice Activation	Yes
Demographic Data Input	No
Practical Maximum Output	120 mW
Write Protection	No
Speaker	28mm diameter dynamic internal speaker
Microphone Jack	3.5 mm mini-jack, impedance 2 kohms
Earphone Jack	3.5 mm mini-jack, impedance 8 ohms
Power Supply	Two AAA batteries
Batteries	N/A
External Power Supply	N/A
Battery Life	Alkaline: Approx. 25 hours NiMH: Approx. 15 hours
Size	4.0” x 1.54” x .77” (101.6 x 39.1 x 19.6 mm), excluding protrusions
Weight	2.22 oz (68.0g) including battery
OS Supported	N/A
CPU	N/A
RAM	N/A
Sound Board	N/A
Video Card and Display	N/A
Removable Drive	N/A
USB Port	N/A
Audio Output	N/A

^
