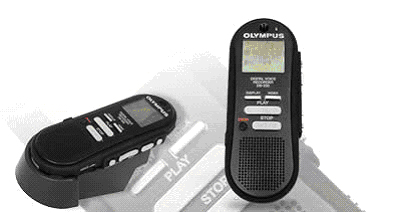

An advanced digital audio device that's both easy to use and easy to carry. This PC downloadable and Mac compatible recorder offers over five hours recording time, five folders for file management, and comes with a docking station for quick and simple file downloading to a computer.

Features & Benefits
 16MB of built-in memory provide up to 330 minutes of recording time (in Long Play mode; 155 minutes in Standard Play mode)
 USB docking station enables you to directly connect to a PC or Mac for a quick and easy transfer of audio files to a computer
 Elegant design and compact body make it perfect to carry in your hand or pocket/bag
 The DS-330 and included DSS Player software are both PC and Mac compatible
 Five (5) separate folders let you store, transfer, and organize your files to your liking (199 files per folder)
 Noise canceling technology reduces unwanted background noise
 Backlit LCD display provides plenty of light so you can use the DS-330 even in low-light conditions
 Connect the DS-330 to a computer and use it as a USB speaker to output audio or as a USB microphone when using voice recognition software
 Includes a built-in Variable Control Voice Actuator that automatically starts and stops recording as it senses sound, helping to conserve memory and battery life
 Insert up to 16 index marks per recording to quickly identify important dictation
 Move, Erase, Overwrite, and Lock audio files
 Use the Alarm Playback function to play a selected file at a pre-set time
 Comes with Instruction Manual; Case; 2 x AAA Battery; CD-ROM: DSS Player 2002; USB Cable; Cradle

Package Contents
DS-330 Digital Voice Recorder
USB Docking Station
PC Cable
USB Cable
Carrying Case
DSS Player Software CD
Instruction Manual
2 x AAA batteries

DS-330 Specifications
Recording Format Digital recording in accordance with IVA Digital Speech Standard (DSS).
Recording Media 16 MB integrated flash memory.
Recording Time SP mode: approx. 155 min. (continuous recording).
LP mode: approx. 330 min. (continuous)
Card Format N/A
Input Level -70 dB.
PC Interface USB
LCD Large backlit full-dot display
LED
Folders Messages 5 Folders
Sampling Frequency Standard mode (SP): 12 kHz.
Long Play mode (LP): 8 kHz.
Overall Frequency Response SP mode: 300 to 5,000 Hz.
LP mode: 300 to 3,000 Hz.
LP Mode
Voice Activation Variable Control Voice Activation (VCVA)
Demographic Data Input N/A
Practical Maximum Output 180 mW or more (8 W speaker).
Write Protection Files can be individually locked.
Speaker Built-in 28 mm round dynamic speaker.
Microphone Jack 3.5 mm mini-jack, impedance 2 k W.
Earphone Jack 3.5 mm mini-jack, impedance 8 W.
Power Supply Rated voltage: 3 V DC.
Batteries Two AAA-size batteries (LR03 or R03).
External Power Supply AC adapter.
Battery Life Approx. 11 hours (according to Olympus tests using alkaline batteries).
Size 4.25 x 1.6 x 0.8 inches (without protrusions).
Weight 2.6 ounces (including batteries).
OS Supported Windows: PC: IBM PC/AT compatible PC
Operating System: Microsoft Windows 98/ 98SE/ Me /2000 Professional/ NT Workstation 4.0 with Service Pack 4 (SP4)/ XP Professional / Home Edition
Recommended: Hard drive space: 70 MB or more
CD-ROM drive: 12x
Sound card: Creative Labs Sound Blaster 16 or 100% compatible sound card
Web broser (Microsoft Internet Explorere 5.o or later) Macintosh:
PC: iMac, iBook, Power Mac G3/G4, PowerBook G3
Note: The computer must support a standard USB port.
Operating system: Mac OS 8.6/9.0/9.1/10.1
Recommended: Hard drive space: 5 MB or more
Display: 800x600 pixels or more, 256 colors or more
CD-ROM drive: 2X or faster
CPU CPU: Intel Pentium II class 300MHz MMX or better (recommended)
RAM Windows: RAM: 64 MB or more (recommended)
Macintosh: RAM: 16MB or more (recommended)
Sound Board Sound card: Creative Labs Sound Blaster 16 or 100% compatible sound card
Video Card and Display
Removable Drive
USB Port Windows: USB port: One free port
Macintosh: USB port: One or more free USB ports
Audio Output Windows: Audio I/O jacks: Earphone output or speakers
Macintosh: Audio I/O jacks: Microphone input and earphone (or speaker) output.
